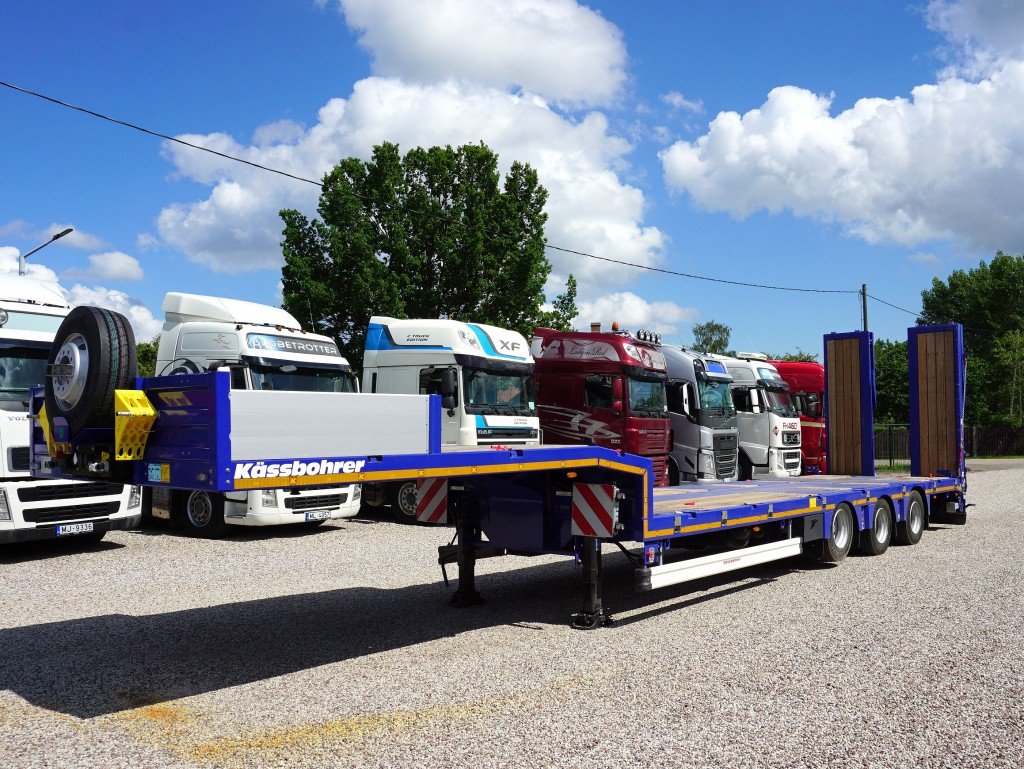

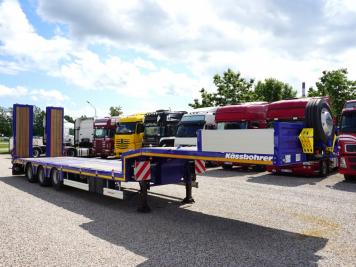

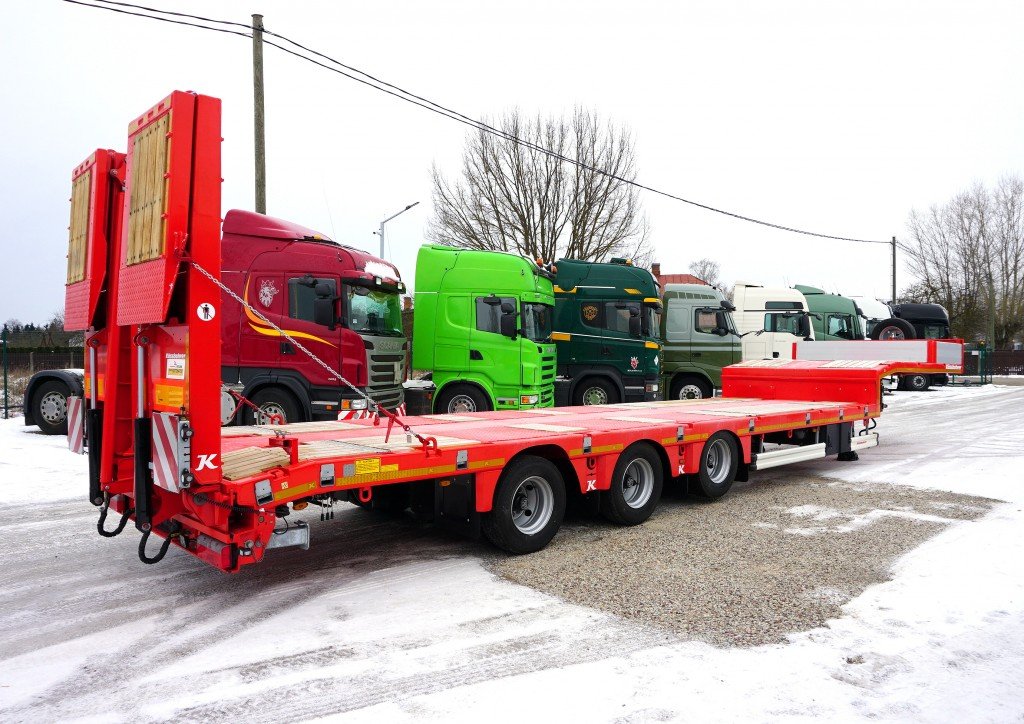

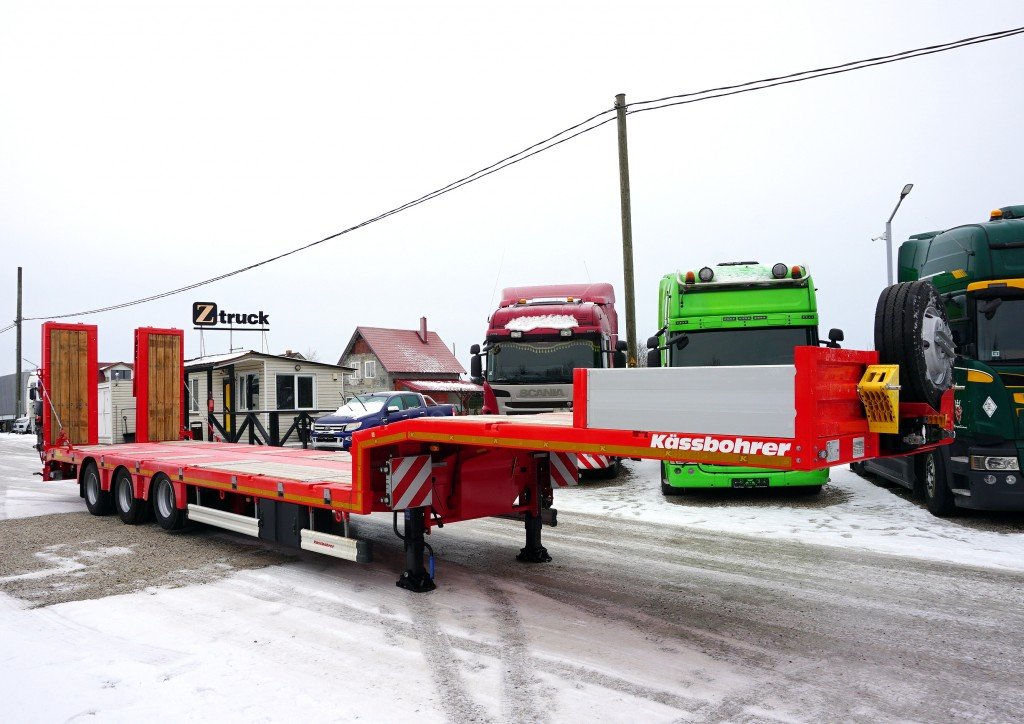

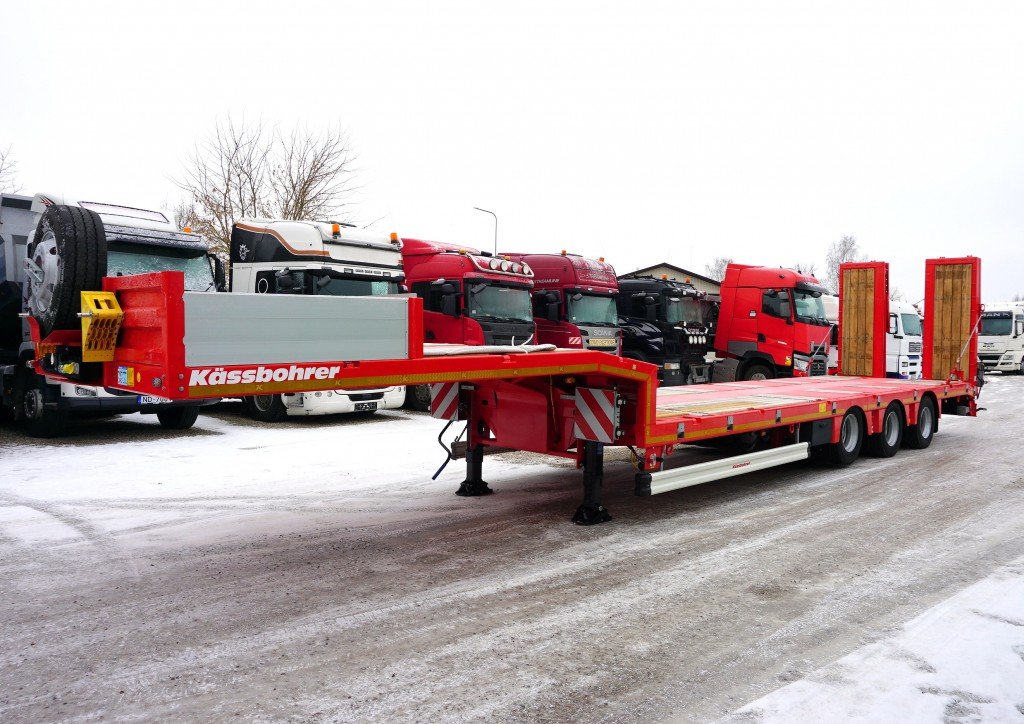

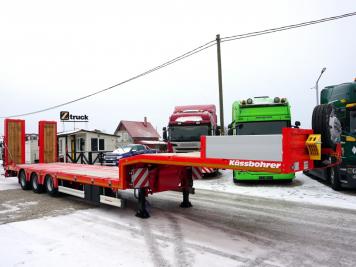

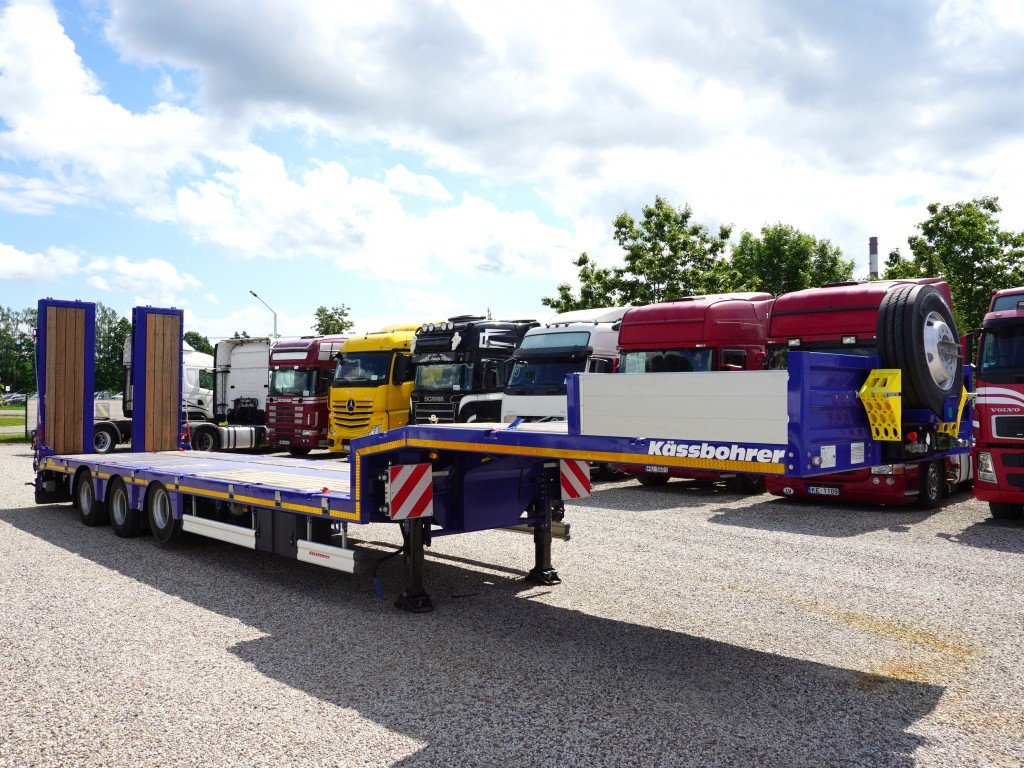

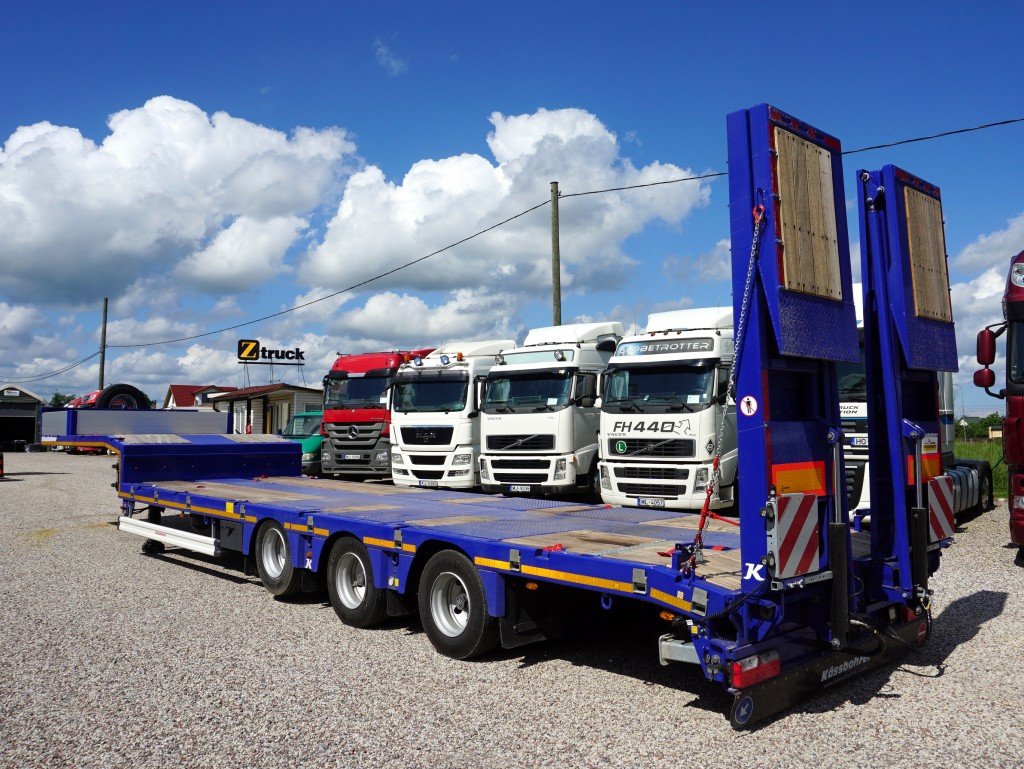

Jauna puspiekabe ar garantiju. Puspiekabe atrodas uz vietas Rīgā un ir pieejama uzreiz.
TEHNISKĀ INFORMĀCIJA:
* Tips: LB3E
* Variants: RIA99
* Ražošanas datums: 08.06.2024
* Sakabes augstums (H5) 1,250 mm
* Uzkraušanas platformas garums (L) 13,440 mm

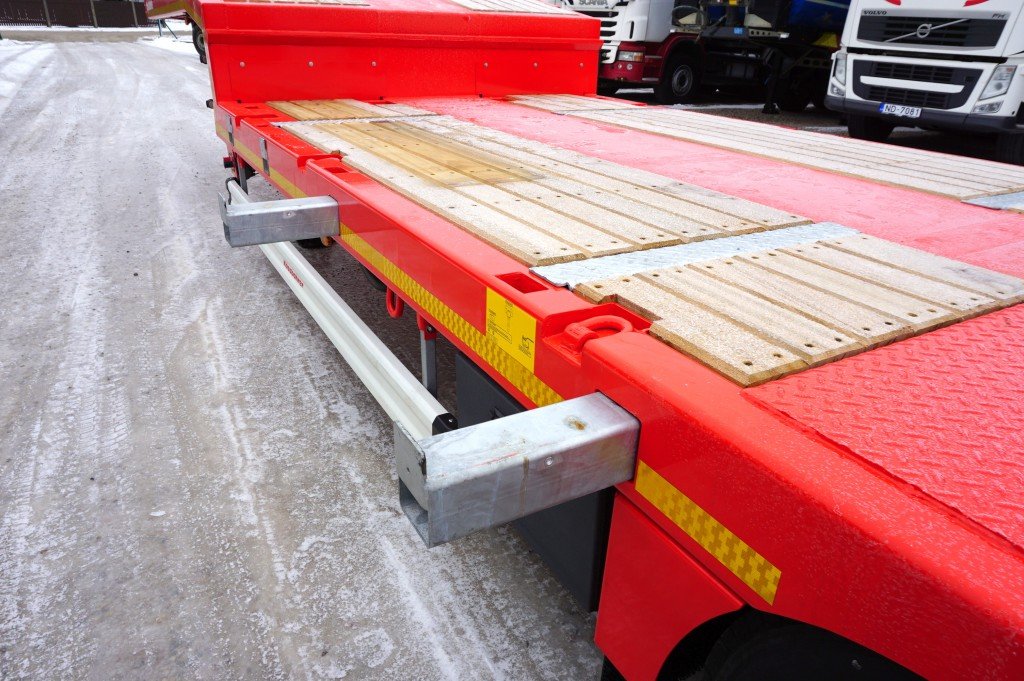

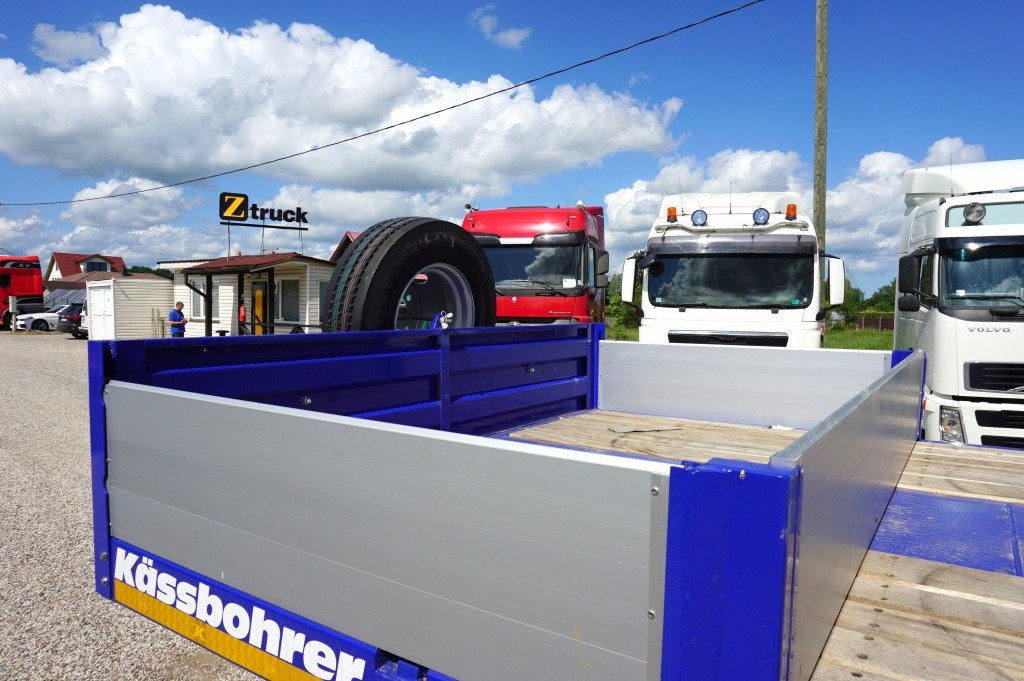

* Kopējais platums (W) 2,550 mm + 600 mm (ar sānu pagarinājumiem)
* "Zoss kakla" garums (GL) 3,950 mm
* Platformas garums (PL) 9,240 mm
* Platformas augstums (PH) 875 mm
* Garenbāze (WB) 9460 mm
* Attālums starp asīm 1.360 mm

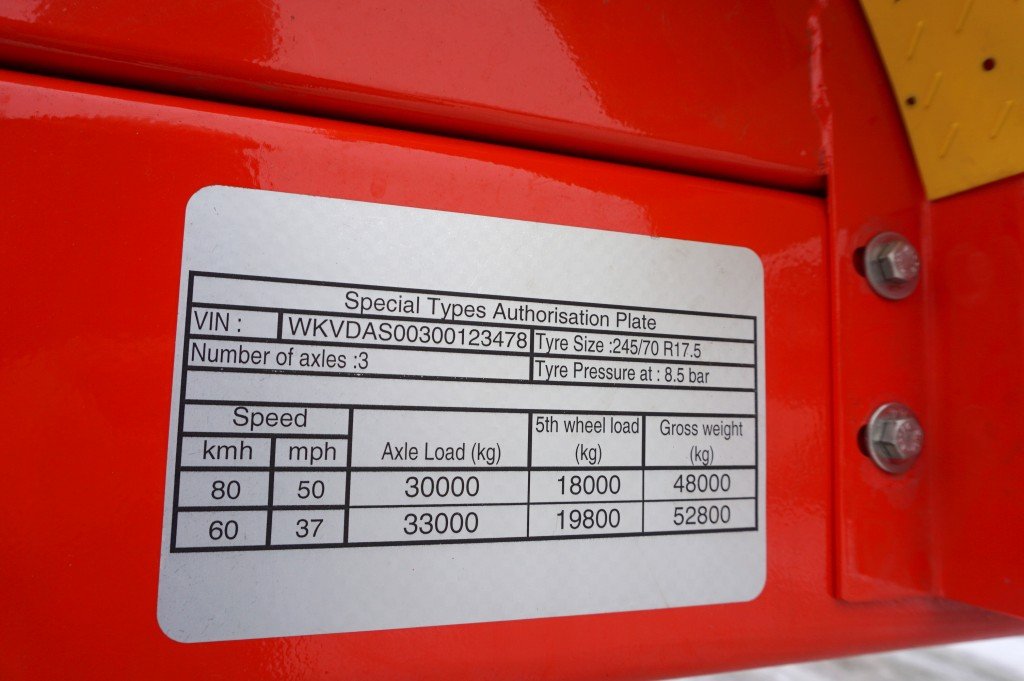

* Ass slodze: 12 tonnas Tehniskā celtspēja (10 tonnu likumīgā celtspēja)
* Ass slodze 30.000 kg
* Pašmasa 10 110kg
* King Pin (Sakabes tapas) slodze 18 000 kg
* Transportlīdzekļa pilna masa (60 km / h) 52 800 kg
* Transportlīdzekļa pilna masa (80 km / h) 48 000 kg
* Paceļamā ass (pirmā)
* Piestūrējošā ass (trešā)

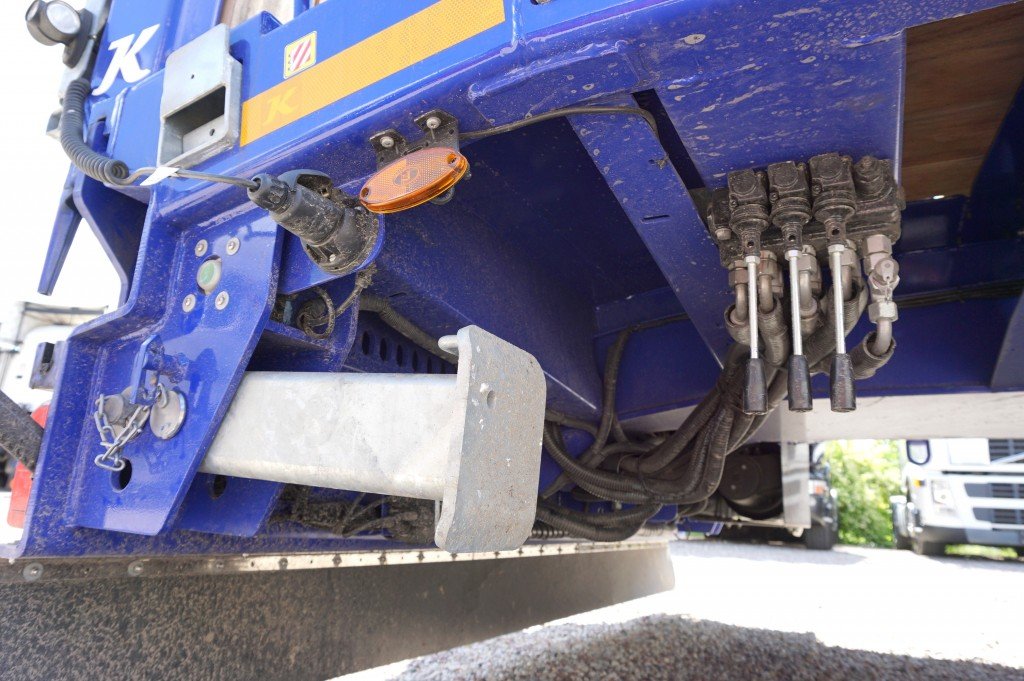

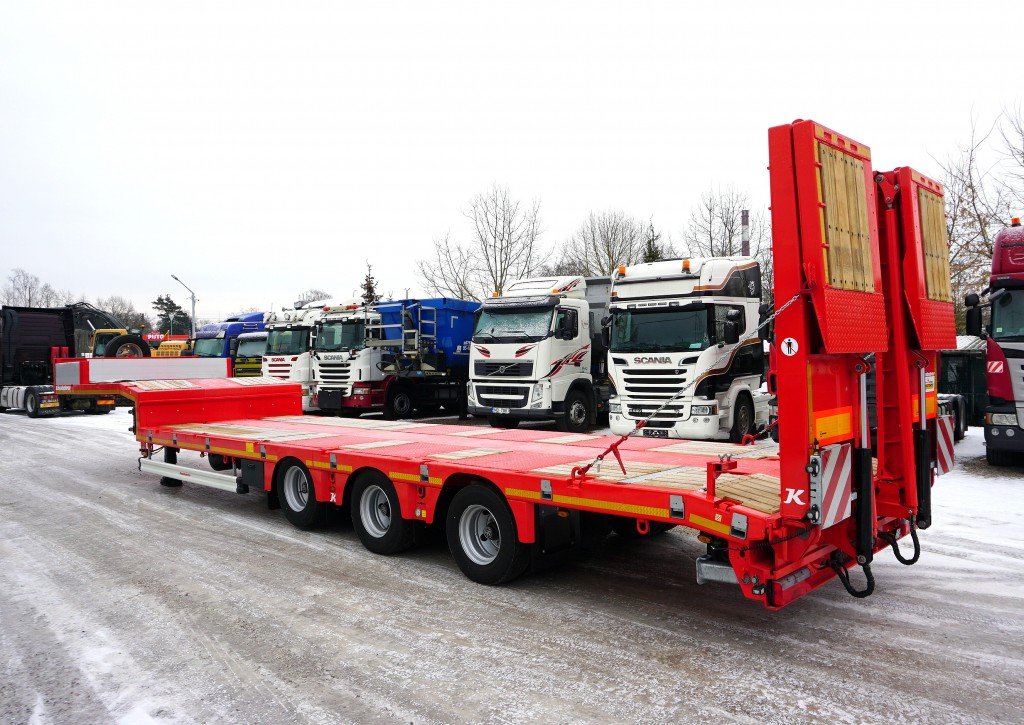

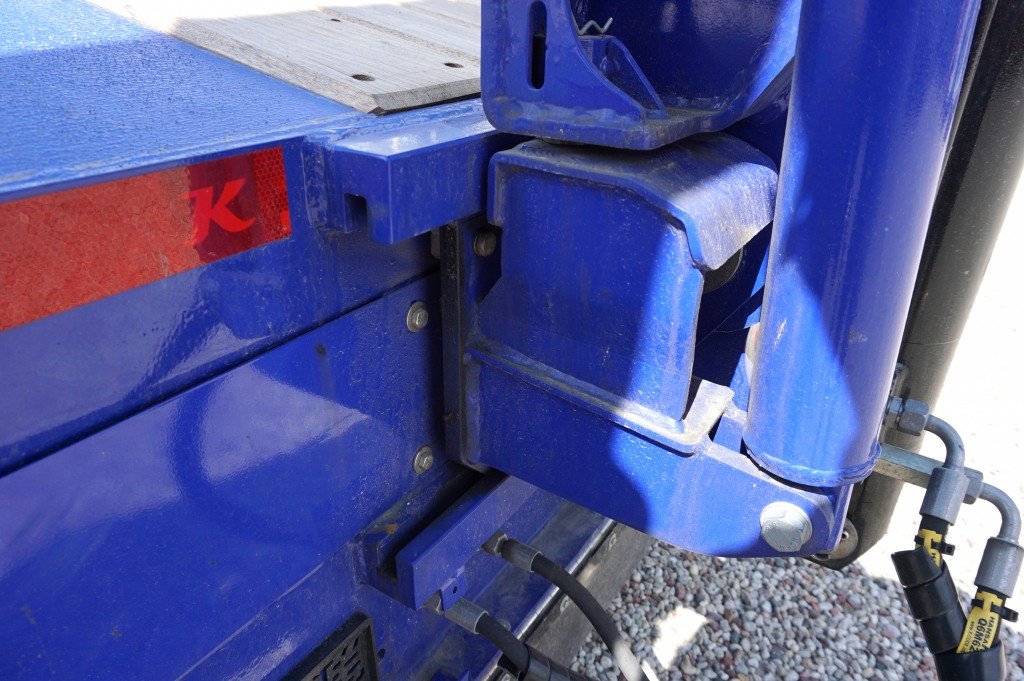

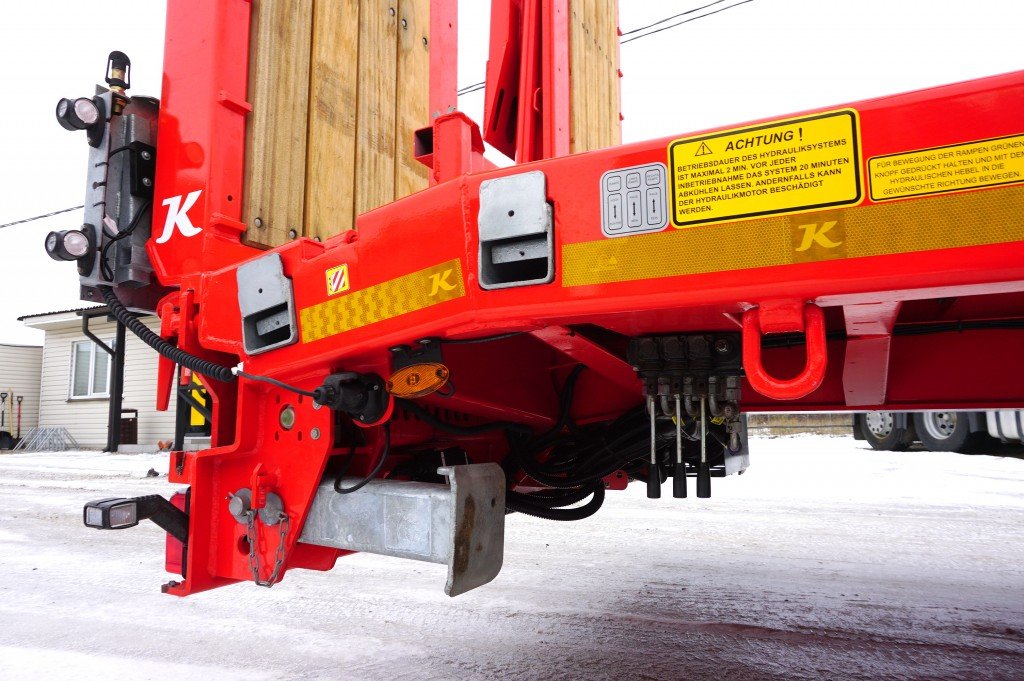

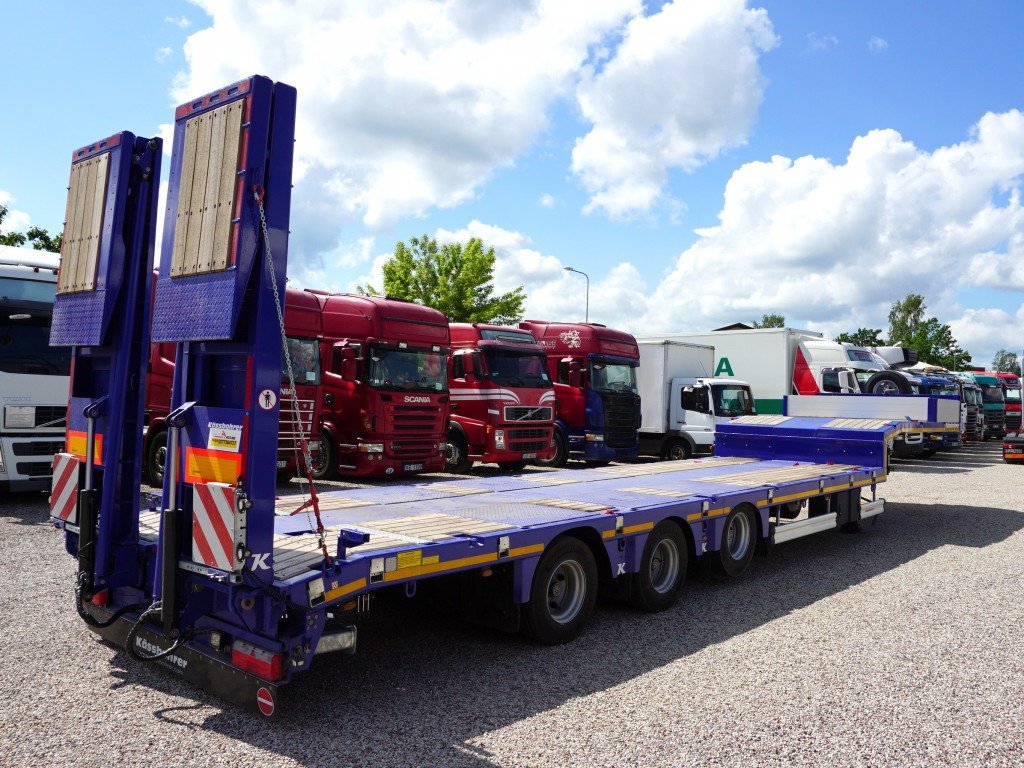

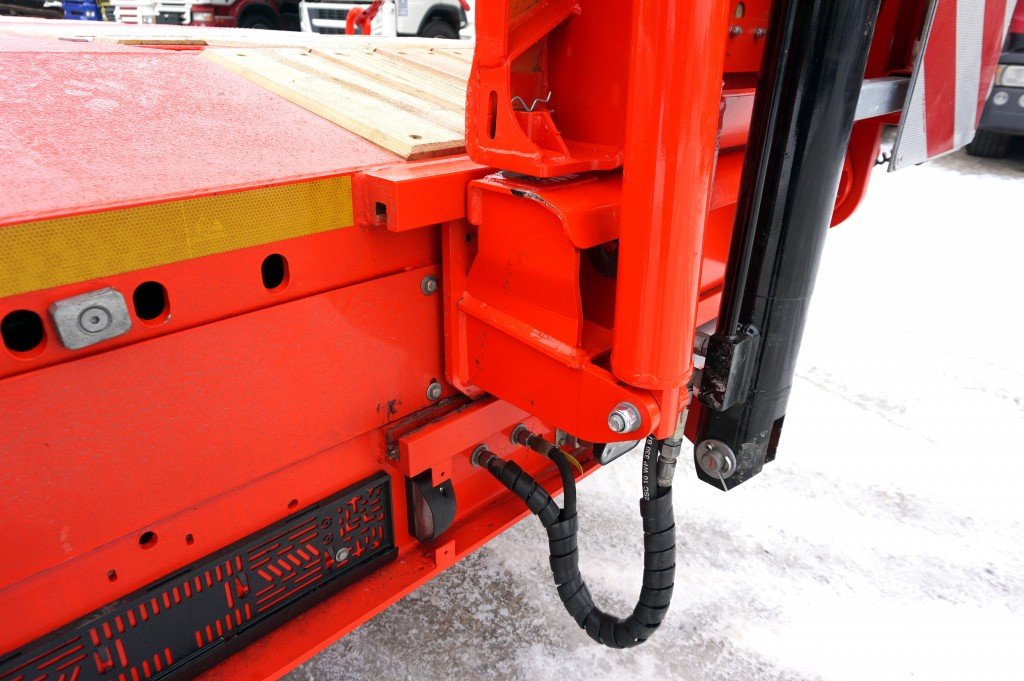

* Hidrauliskās aizmugurējās rampas, ar platuma regulāciju.
* Rezerves ritenis.
Chassis: Made of high quality and high strength ST 52 steel , in compliance with Standard ISO 1726
Brake System: Dual circuit electro-pneumatic WABCO EBS 4S/3M brake system with anti-lock (ABS) and tilt control system (RSS), in compliance with R egulation UN ECE R13

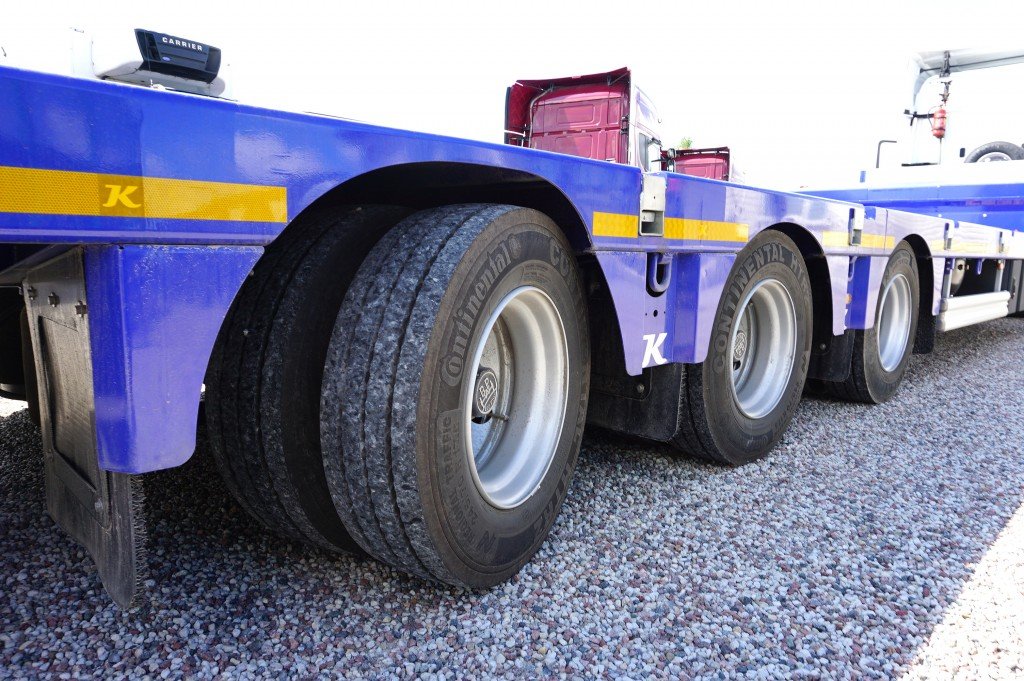

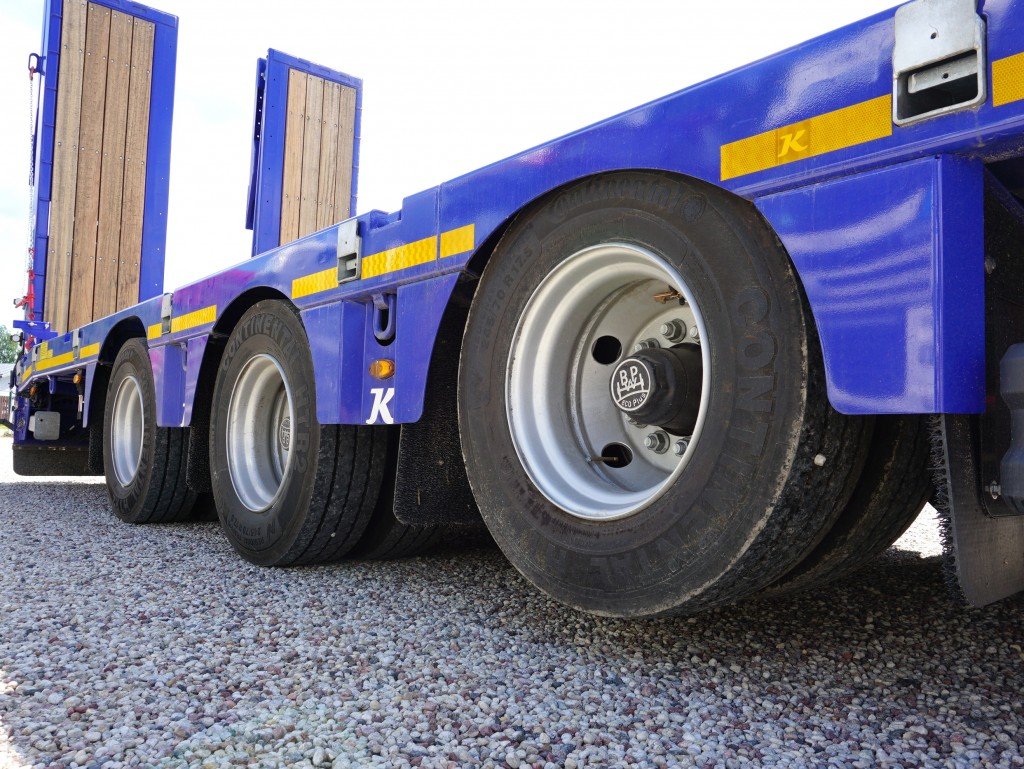

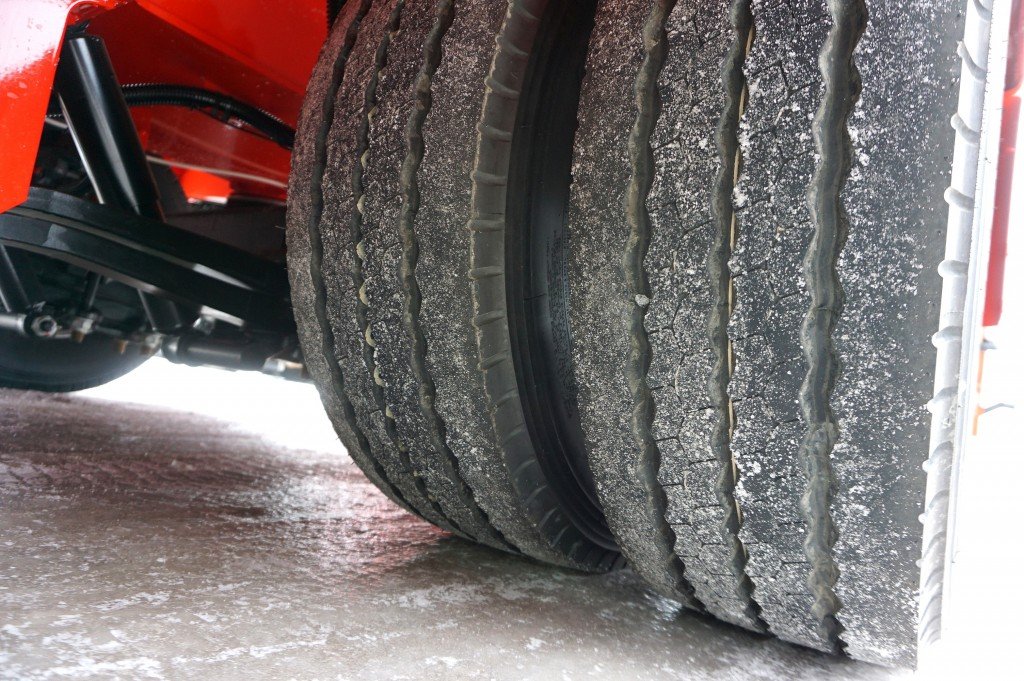

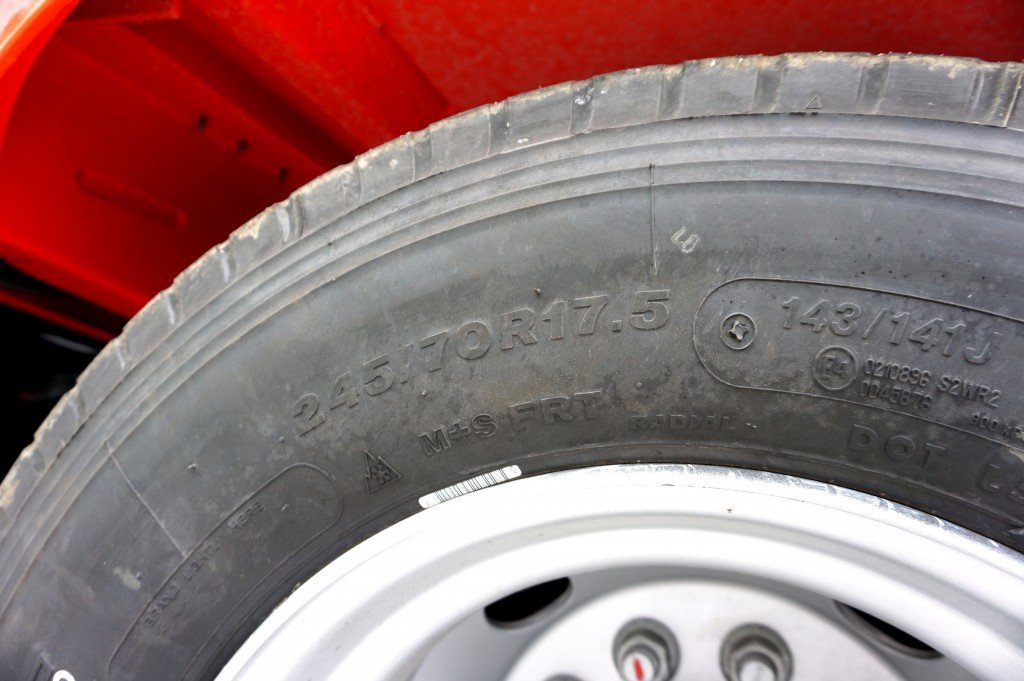

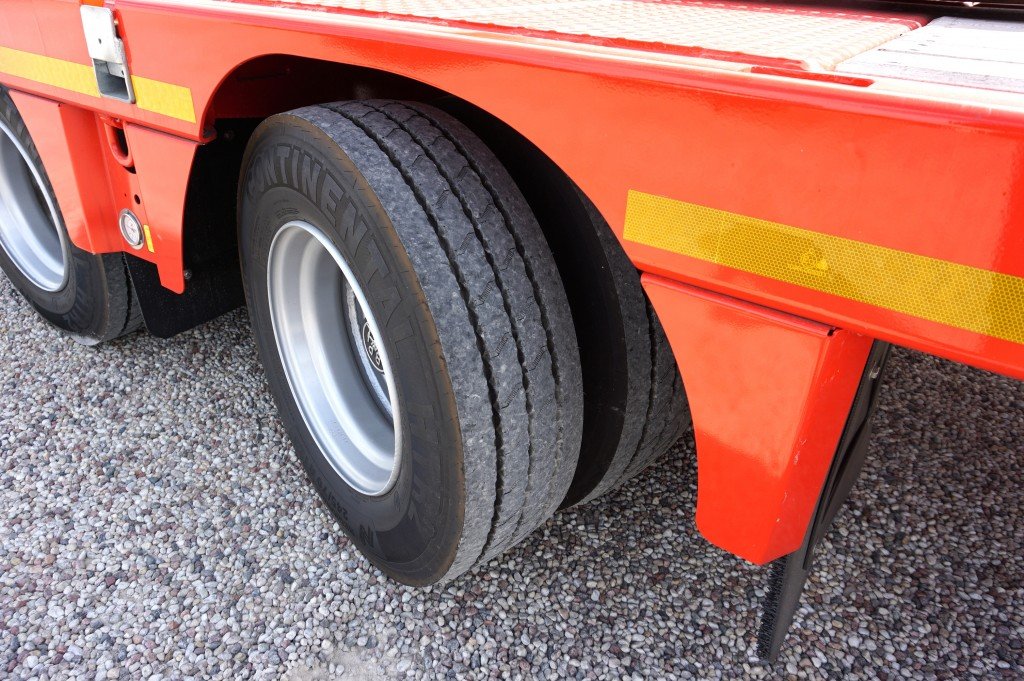

Tyre Size: 245/70 R 17.5

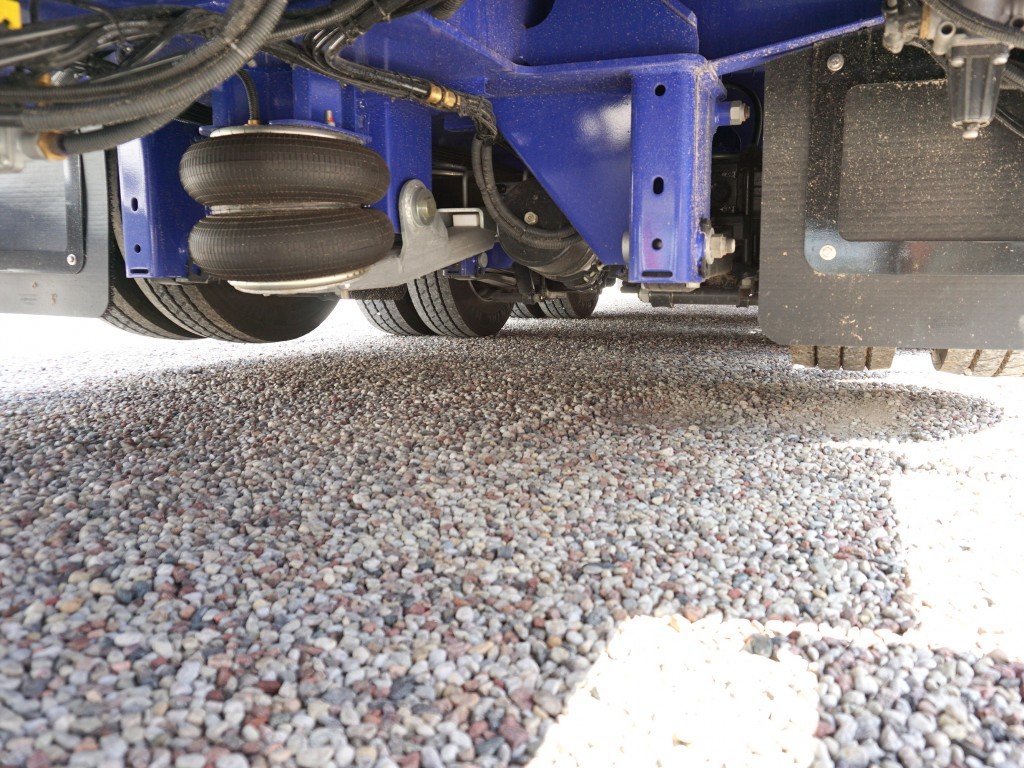

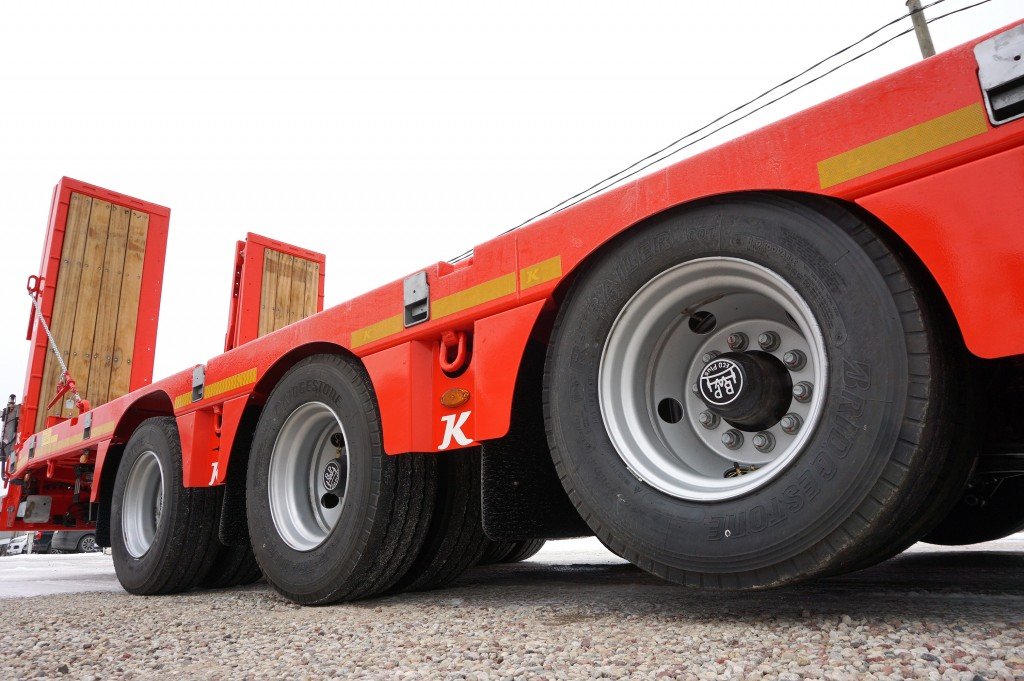

Axles: 3 Units, 2 units of fixed axles at the front, 1 unit of self-steering axle at the rear. BPW air suspension system and drum brake axles, Load sensitive 1st axle lifting system.

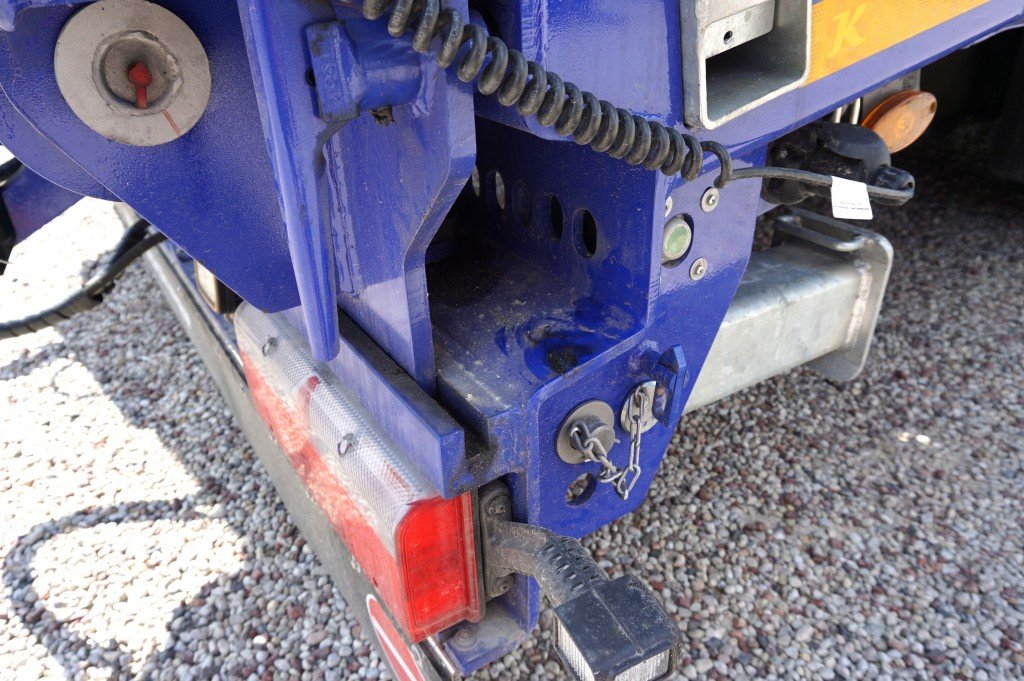

Electric System: ASPÖCK lightning installation with 24V LED side position lamp and 2 x 7 and 1 x15 pin sockets, in compliance with Regulation UN EC E R48 and ADR Legislation

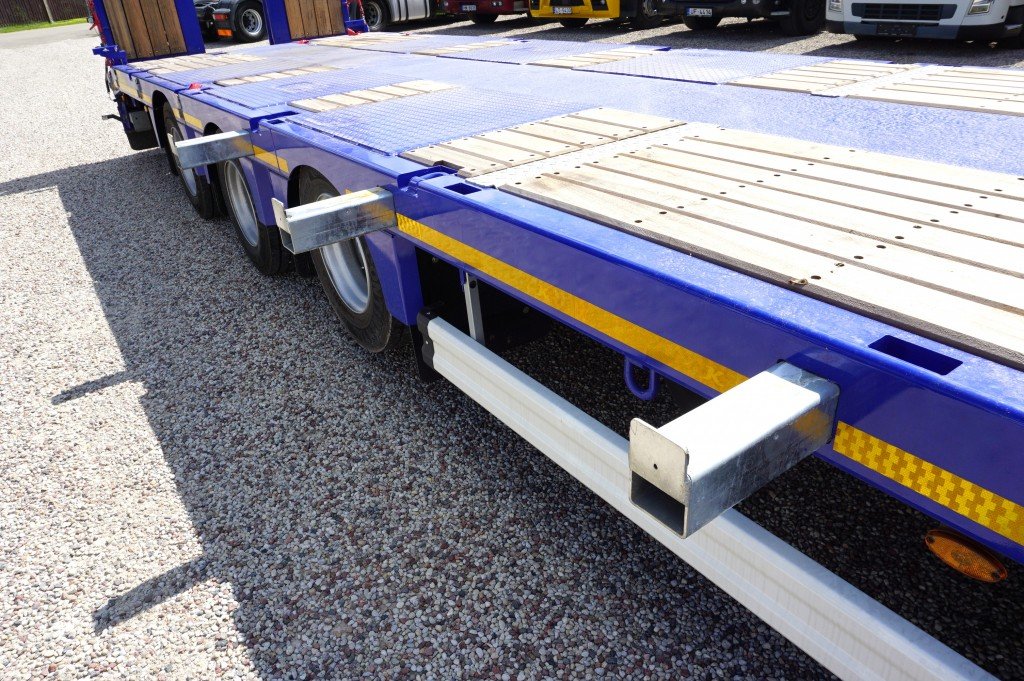

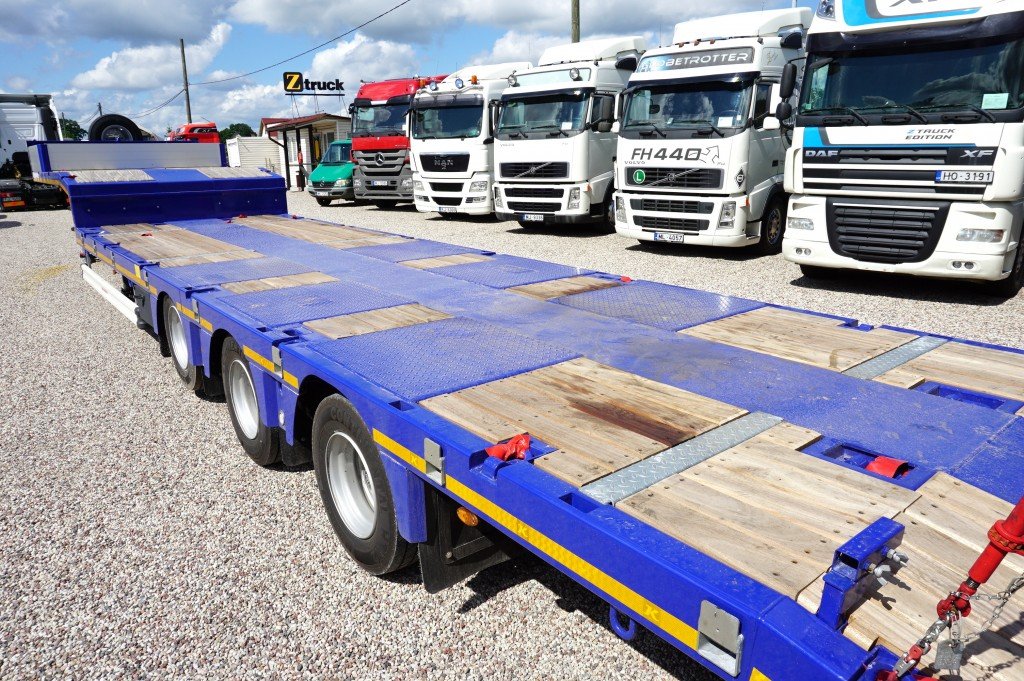

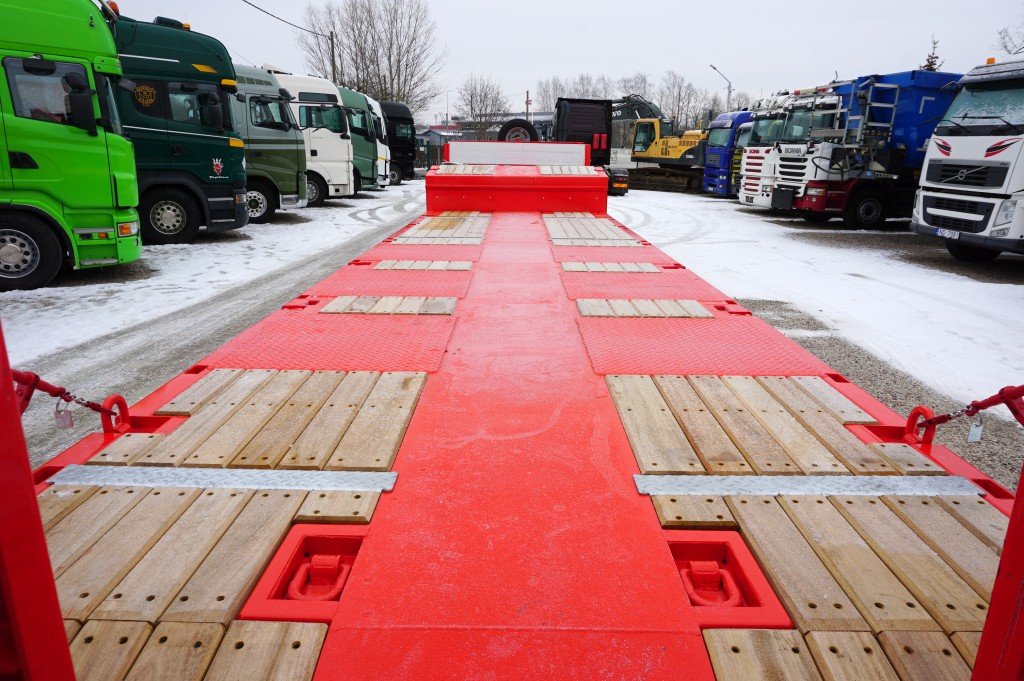

Floor: 45 mm. thick hardwood floor and drop-patterned steel floor only on top of the wheels.Ramp Type: 2 units of long hydraulic ramps are included. Suitable for hydraulic sliding/folding operations, has hardwood covering with 40 m m t hickness, 4,200 mm length and 850mm width, 9 degrees of ramp angle, load capacity is 40,000 kg and 3,510 mm height inclosed position.Steering Type: 2 units of fixed axles at the front, 1 unit of self steering axles at the rear
